Axial fan DFV series

Contact form
Request a quote

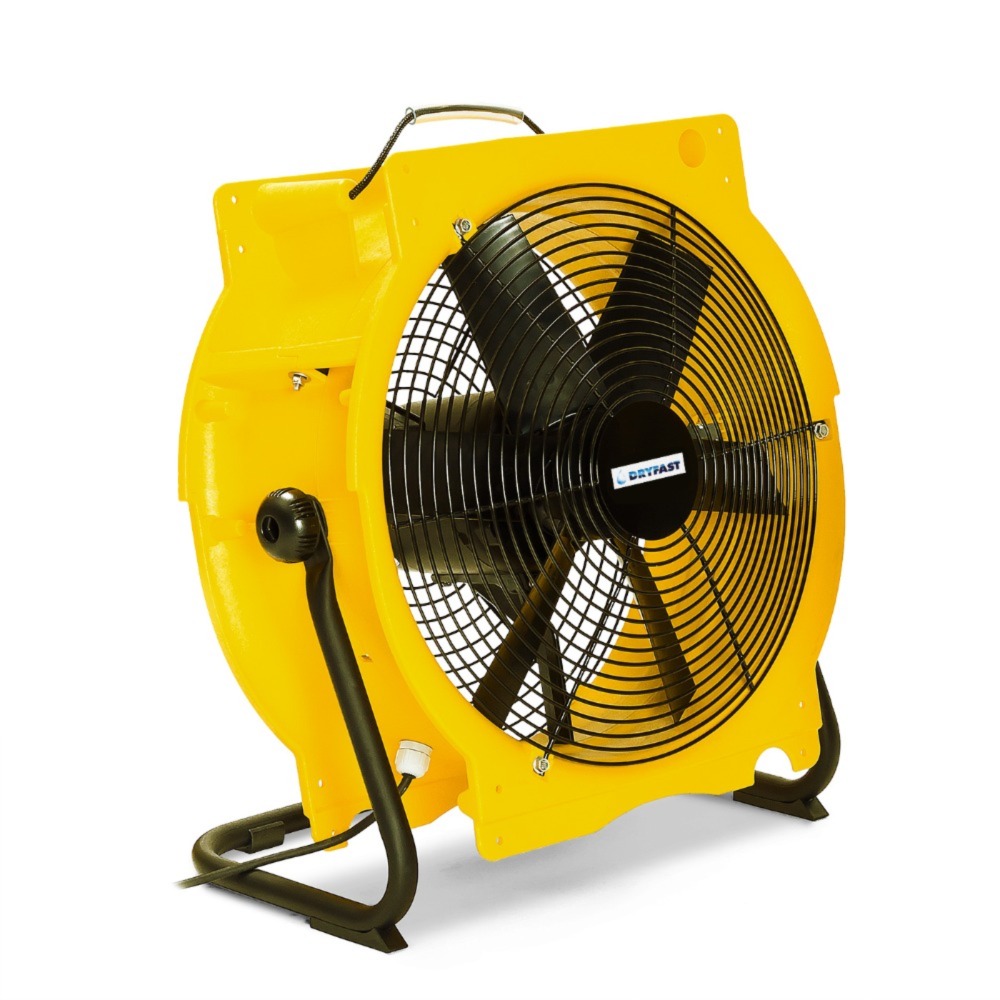

The DFV series are portable and stackable axial fans, multifunctional for support in construction drying, dust extraction, cooling, heating, etc. The airflow can be set to 3 different positions. The DFV4500HP has a red fan blade, the DFV4500 and DFV7000 have a black fan blade.

Product specifications

Article codeAir output max.Air pressure max. Air speedAir temperature max.Connection voltage Power consumptionRecommended fusePlug connectorSwitchable Noise level Dimensions L x W x HDiameterIP classWeight Mobility
Axial fan DFV series DFV4500 5300 m³/h 80 Pa - 40 °C 230V / 50Hz 0,23 kW 10 A CEE 7/7 type E/F yes 53 dB(A) @3mtr. 360 x 480 x 570 mm 450 mm in combination with hose adapter IP55 12,5 kg mobile
Axial fan DFV4500HP DFV4500HP 4500 m³/h 250 Pa - 40 °C 230V / 50Hz 0,35 kW 10 A CEE 7/7 type E/F yes 64 dB(A) @3mtr. 360 x 480 x 570 mm 450 mm in combination with hose adapter IP55 12,5 kg mobile
Axial fan DFV7000 DFV7000 8500 m³/h 80 Pa - 40 °C 230V / 50Hz 0,46 kW 10 A CEE 7/7 type E/F Yes 58 dB(A) @3mtr. 360 x 580 x 680 mm 550 mm i.c.m. slangadapter IP55 15 kg Mobile
