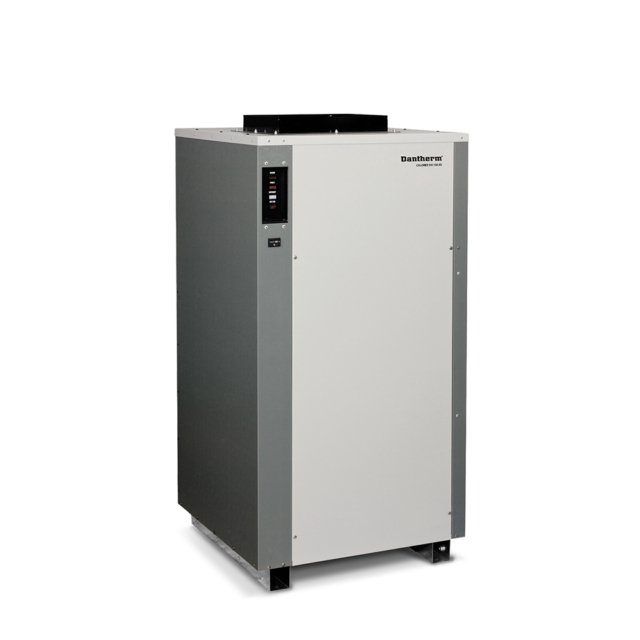

Condenser dryer DH150

Contact form
Request a quote

The DH150 is a fully automatic high-capacity free-standing dehumidifier. With an internal hygrostat as standard, the powerful high-pressure fan allows this large machine in the range to be used either free-blowing or connected to ductwork.

This is an ideal solution for larger storage locations, production areas but also data centres and many other applications.

Optionally, the DH150 can be connected to BMS systems, fitted with air filters and alternative discharge options.

Key features

  • Fully automatic
  • Built-in hygrostat
  • Polyester-coated evaporator and condenser
  • Plastisol coated galvanised housing
  • Hot gas defrost system for low temperature operation

Options

  • Top or rear discharge opening
  • Return air filter
  • Condensate pump
  • BMS options
  • External hygrostat

Product specifications

Article code

DH150AX
Temperature range

0-35°C
Dehumidification capacity @ 30°C/60% RH

150l/24h
Heat recovery @ 30°C/60% RH

7.4 kW
Air output

2.500 m³/h
Air pressure

0-200 Pa
Noise level

58 dB(A)
Refrigerant

R407C
Connection voltage

230 V/1ph/50Hz
Power consumption

2.5 kW
Full-load amps

21A
Max. recommended fuse

30 A
Compressor start ampere

61 A
Compressor start ampère (soft start)

28 A
Dimensions L x W x H

660 x 660 x 1313 mm
Weight

130 kg
Condensate drain size

¾" BSPM inch
