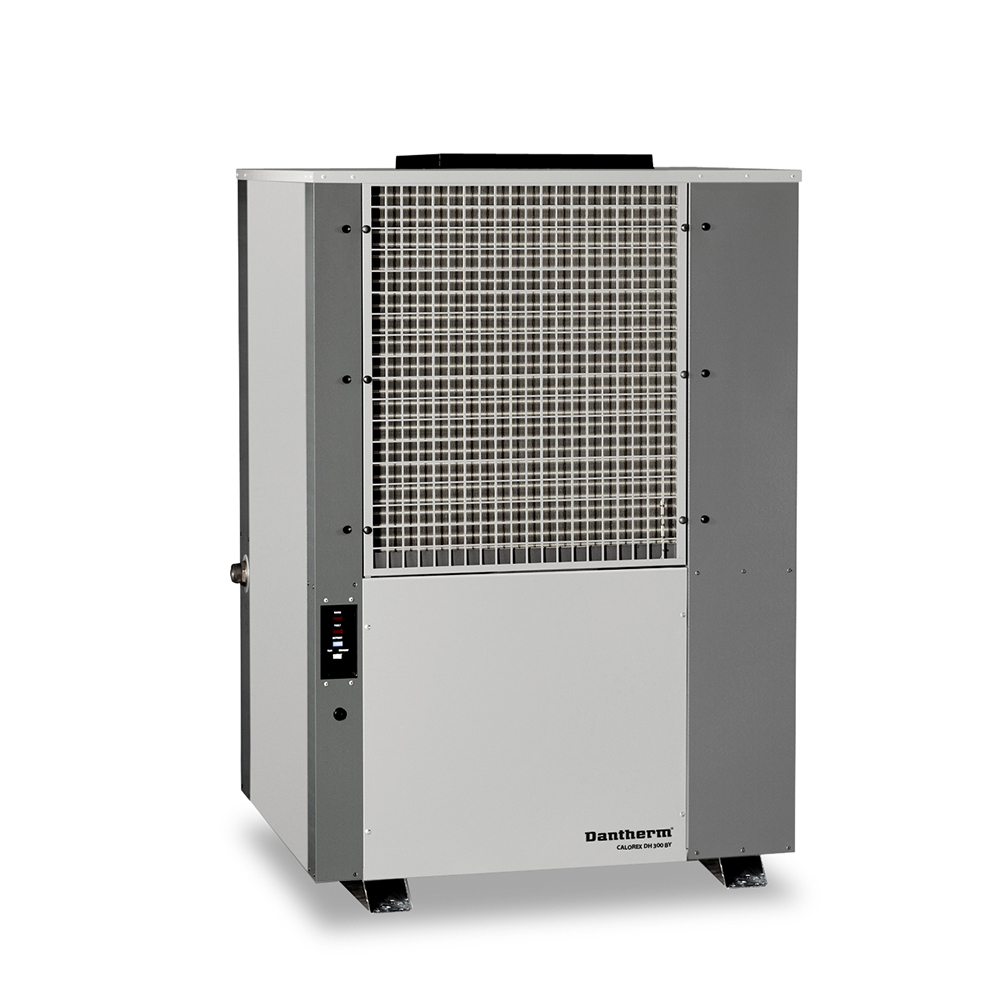

Condenser dryer DH300

Contact form
Request a quote

The DH300 is a fully automatic high-capacity freestanding dehumidifier. Thanks to its powerful high-pressure fan, this large machine can be used either free blowing or directly connected to ductwork. The DH300 is equipped with an internal hygrostat as standard.

An ideal solution for storage locations, production areas, data centres and many other applications.

Optionally, the DH300 can be connected to BMS systems, fitted with air filters and alternative discharge options.

Key features

  • Fully automatic
  • Built-in hygrostat
  • Polyester-coated evaporator and condenser
  • Plastisol coated galvanised housing
  • Hot gas defrost system for low temperature operation

Options

  • Top or rear discharge opening
  • Return air filter
  • Condensate pump
  • BMS options
  • External hygrostat

Product specifications

Article code

DH300BY
Temperature range

-15 to 30°C
Dehumidification capacity @ 30°C/60% RH

300l/24h
Heat recovery @ 30°C/60% RH

14.7 kW
Air output

5.000 m³/h
Air pressure

0-140 Pa
Noise level

66 dB(A)
Refrigerant

R407C
Connection voltage

400/3ph/50Hz
Power consumption

6.7 kW
Full-load amps

19 A
Max. recommended fuse

24 A
Compressor start ampère

101 A
Compressor start ampère (soft start)

34 A
Dimensions L x W x H

980 x 826 x 1475 mm
Weight

220 kg
Condensate drain size

1½" BSPM-inch
